XJCSENSOR: Your Trusted Source for Advanced Control Instruments
- Optimized Measurement Accuracy
- Versatile Control Capabilities
- Ease of Use
- Resilient Build Quality
- High-Speed Performance
Superior Features of XJCSENSOR Control Instruments
Enhanced Precision
Utilizing state-of-the-art technology, our control instruments provide exact measurements and adjustments to maintain optimal process conditions.
Diverse Functionality
Whether you need simple on/off controls or complex PID algorithms, our instruments can handle various control tasks with ease.
User-Friendly Interfaces
Clear displays and intuitive controls ensure that interacting with our instruments is straightforward, minimizing the learning curve.
Rugged and Resilient
Constructed to thrive in tough industrial environments, our devices promise longevity and dependability.
Control Instrument Offerings

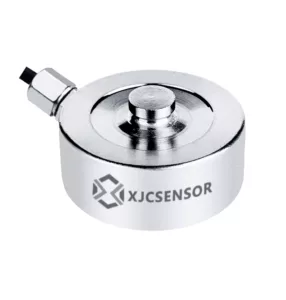

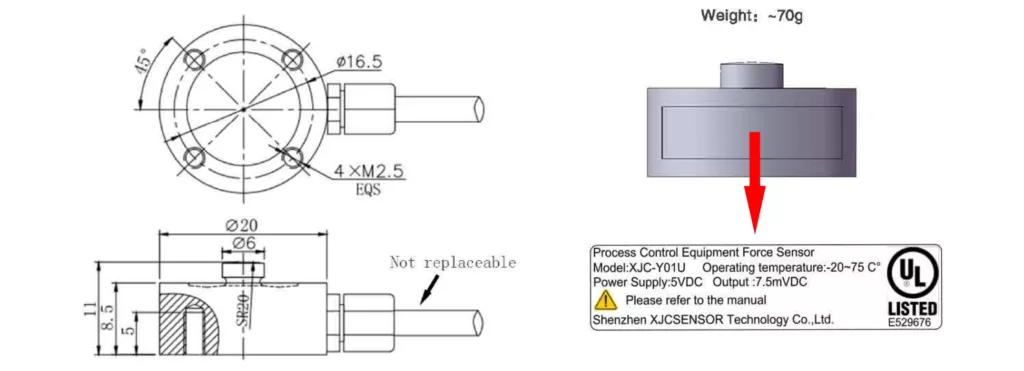

XJC-Y01U
Features:
- Capacity: 0-2000kg
- Nonlinearity: 0.5%F.S
- Recommended excitation: 5VDC LPS power supply
- Protection class: The front meets type1
- Hysteresis: 0.5% F.S
- Repeatability: 0.5% F.S
- Input impedance: 1000±100Ω
- Creep (30min): 0.5% F.S
- Zero balance: +2%FS
- Safe load limit: 150%
- Cable size: Ø3x4m
- Material: Stainless steel
- Output signal: 7.5mVDC nominal at Full Load Rating
- Compensated temp range: -10~40°C
- Operating temp range: -20-75°C
- Insulation: ≥5000MΩ/100VDC
- Output impedance: 1000±100Ω
- Temp effect on output: 0.2% F.S./10°C
- Temp effect on zero: 0.2% F.S./10°C
- Ultimate load limit: 200%
- Life: Full scale more than 1 million times
- Cable connection: Ex +: Red; Ex -: Black; Sig + : Green; Sig-: White

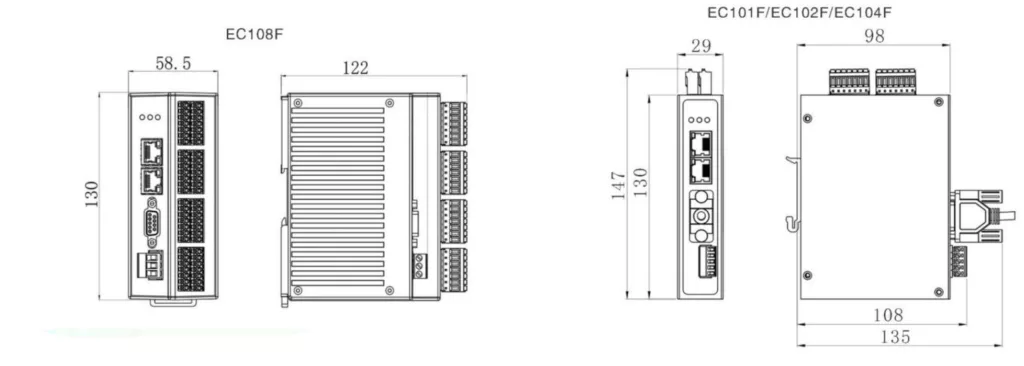

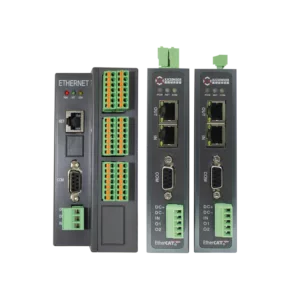

XJC-EC10XF
Features:
- Power source: 5VDC,
- Recommended Excitation: 5VDC
- Non-linearity: 0.002% F.S.
- Hysteresis: 0.1%-0.05%FS
- Repeatability: 0.1%-0.05%FS
- Zero Balance: ±2% F.S.
- Power: Approx. 10W
- Cable connection: Ex+: Red; Ex-: Black; Sig +: Green; Sig-: White
- Material: Engineering plastics
- Rated input: 0.2-3.0mV/V
- Resolution: 1/10000
- Sampling rate: 10-8000Hz
- Operating temp range: -10°C to 50°C, humidity below 85% RH
- Communication protocol: EtherCAT
- Transmission output: RS485 EtherCAT
Applications: Can work together with strain gages, ceramic piezoresistive sensors, and diffuse silicon piezoresistive sensors to realize the conversion and transmission of physical quantities such as force, pressure, weight, displacement, torque, and liquid level. The signal can be directly input into computers or other measurement and control instruments.

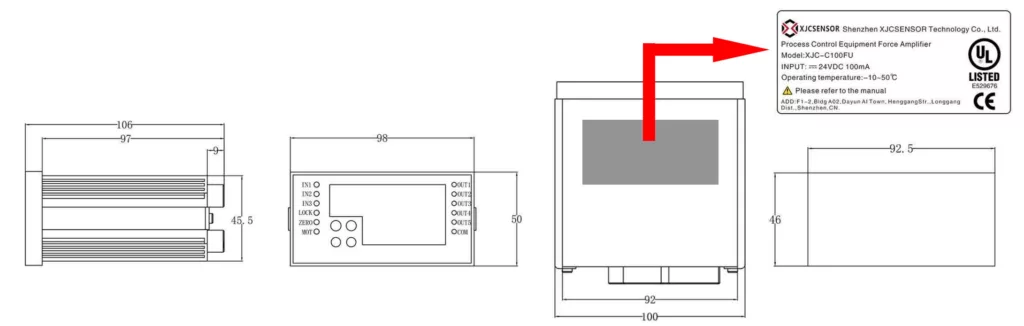

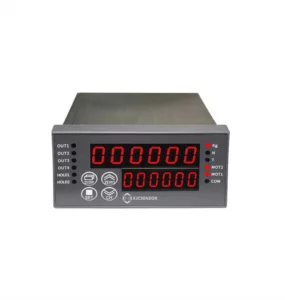

XJC-C100FU
Features:
- Power source: 5VDC
- Recommended Excitation: 5VDC
- Non-linearity: 0.002% F.S.
- Hysteresis: 0.1%-0.05% F.S.
- Repeatability: 0.1%-0.05% F.S.
- Zero Balance: ±2% F.S.
- Power: ~5W
- Cable connection: Ex+: Red; Ex-: Black; Sig -: White; Sig +: Green
- Material: Metallica
- Rated input: 0.5-3.0mV/V
- Resolution: 1/500000
- Sampling rate: 15-1920Hz
- Operating temp range: -10°C to 50°C, humidity below 85% RH
- Display accuracy: -199,999 to 999,999
- Transmission output: RS232, RS485, 0-10V, 4-20mA
Applications: Voltage transmitter can work together with strain gages, ceramic piezoresistive sensors, and diffused silicon piezoresistive sensors to realize the conversion and transmission of physical quantities such as force, pressure, weight, displacement, torque, and liquid level. The signal can be directly input into computers or other measurement and control instruments.

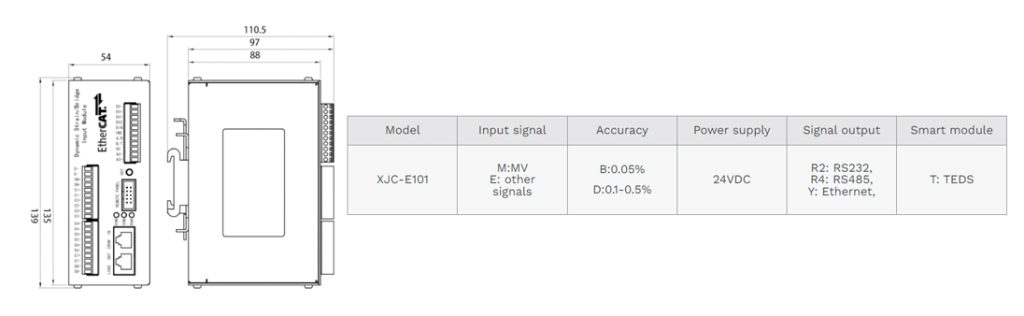

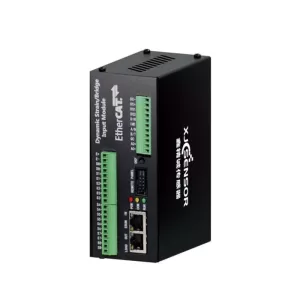

Model :X-E101
Features:
- External power supply: 5VDC
- Material: Metal
- Power supply: 24VDC
- Rated input: 0.5-14mV/V
- Non-linearity: 0.1%-0.05%F.S.
- Resolution: 1/50000
- Hysteresis: 0.1%-0.05%F.S.
- Sampling speed: 10, 9.6K, 19.2K
- Repeatability: 0.1%-0.05%F.S.
- Operating temp range: -10℃ to 50℃, Humidity Below 85% RH
- Temperature drift: ≤10ppm/℃
- Display accuracy: -199,999-999,999
- Power Consumption: about 5W
- Communication Interface: EtherCAT, RS232, RS485

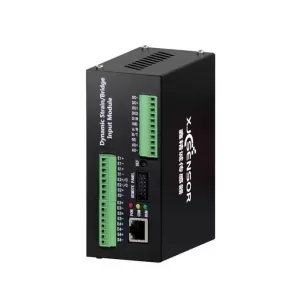

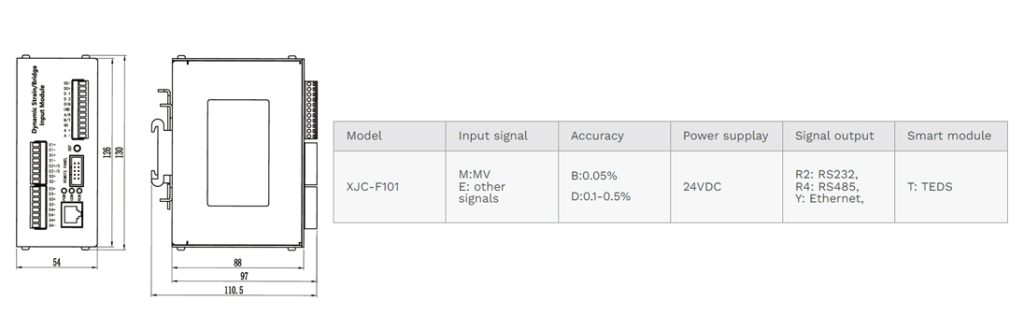

Model :X-F101
Features:
- External power supply: 5VDC
- Material: Metal
- Power supply: 24VDC
- Rated input: 0.5-14mV/V
- Non-linearity: 0.1%-0.05%F.S.
- Resolution: 1/50000
- Hysteresis: 0.1%-0.05%F.S.
- Sampling speed: 10, 9.6K, 19.2K
- Repeatability: 0.1%-0.05%F.S.
- Operating temp range: -10℃ to 50℃, Humidity Below 85% RH
- Temperature drift: ≤10ppm/℃
- Display accuracy: -199,999-999,999
- Power Consumption: about 5W
- Communication Interface: Ethernet, RS232, RS485

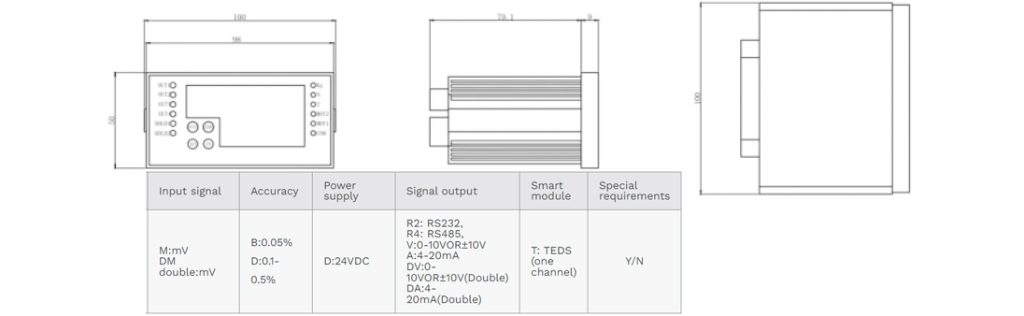

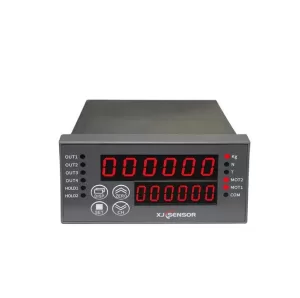

Model :X-F31
Features:
- External power supply: 5VDC
- Material: Metal
- Power supply: 24VDC
- Rated input: 0.5-3.0mV/V
- Non-linearity: 0.1%-0.03%F.S.
- Resolution: 1/50000
- Hysteresis: 0.1%-0.05%F.S.
- Sampling speed: 15-4800Hz
- Repeatability: 0.1%-0.05%F.S.
- Operating temp range: -10℃ to 50℃, Humidity Below 85% RH
- Zero balance: ±2%F.S.
- Display accuracy: -199999-999999
- Power Consumption: about 5W
- Communication Interface: RS232, RS485, 0-10V, 4-20mA

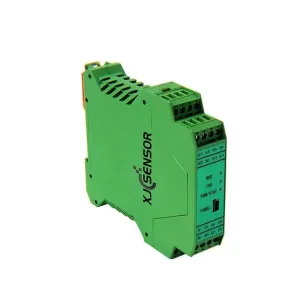

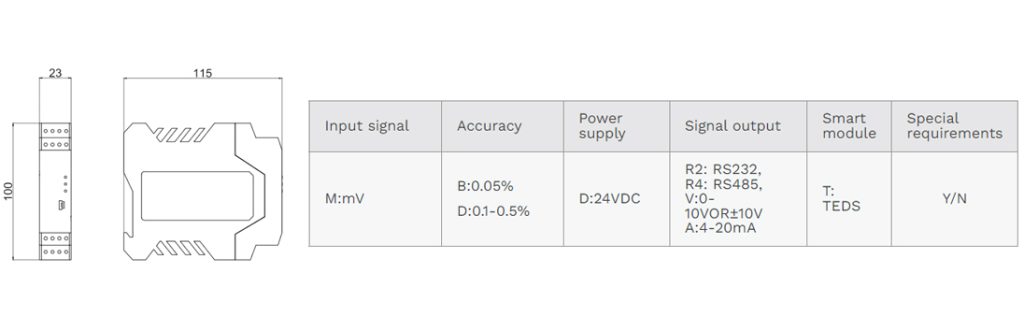

Model :X-F61
Features:
- External power supply: 5VDC
- Material: Plastic
- Power supply: 24VDC
- Rated input: 0.5-3.0mV/V
- Non-linearity: 0.1%-0.03%F.S.
- Resolution: 1/50000
- Hysteresis: 0.1%-0.05%F.S.
- Sampling speed: 15-4800Hz
- Repeatability: 0.1%-0.05%F.S.
- Operating temp range: -10℃ to 50℃, Humidity Below 85% RH
- Zero balance: ±2%F.S.
- Switch I/O type: NPN/PNP
- Power Consumption: about 5W
- Communication Interface: RS232, RS485, 0-10V, 4-20mA
Services Tailored to Enhance Your Operations
Wholesale Options
Our products are available at wholesale prices, offering the perfect balance between cost and quality.
Customization (OEM)
Tailor your control instruments to meet specific requirements, ensuring seamless integration into your existing systems.
Design & Manufacturing (ODM)
Benefit from our full-scale design and production capabilities to create custom solutions from the ground up.
Unwavering Commitment to Quality Assurance
Comprehensive Testing
All our control instruments undergo stringent testing to guarantee accuracy and reliability right out of the box.
High-Quality Materials
By choosing superior materials and components, we ensure our products withstand the test of time and deliver consistent performance.
Expertise in Production
Our skilled engineers oversee every stage of the manufacturing process, applying their vast experience to maintain high-quality standards.
Continuous Innovation
We constantly seek ways to improve our products by staying up-to-date with the latest technological advancements and customer feedback.
