UNDERSTANDING LOAD CELLS AND THEIR FUNCTION

Load cells are devices that measure force or weight by converting mechanical input into electrical signals. They are widely used across industries to ensure accurate weight or force measurement. XJCSENSOR’s load cells are crafted for high precision and durability, making them ideal for diverse applications, including weighing systems and force measurement.

XJCSENSOR Load Cells Series

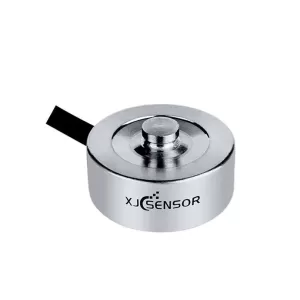

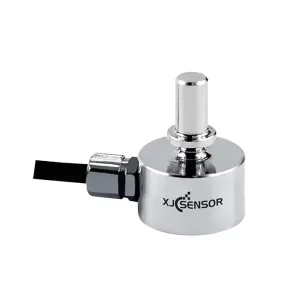

Compression Load Cell

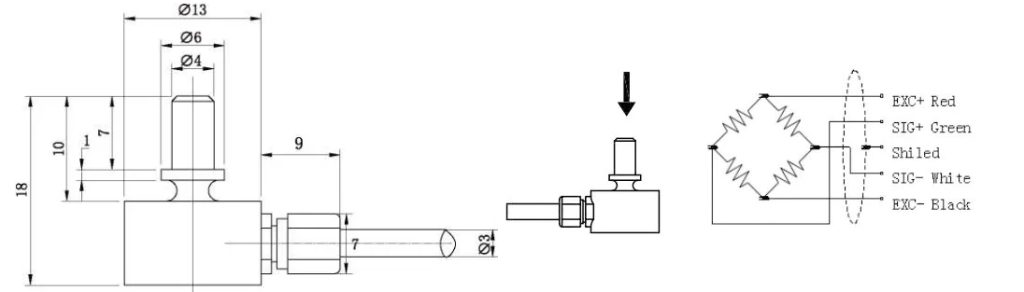

Model :X-C01-13-A

Technical Parameter:

Capacity: 0-100kg
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 0.5mV/V (0-3kg)
1.0-1.5mV/V (5-100kg)
Recommended excitation: 5V-10VDC
Maximum excitation: 10VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.

Insulation: >5000MΩ/100VDC
Input impedance: 350±5Ω (1000±100Ω)
Output impedance: 350±5Ω (1000±100Ω)
Creep (30min): 0.1%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

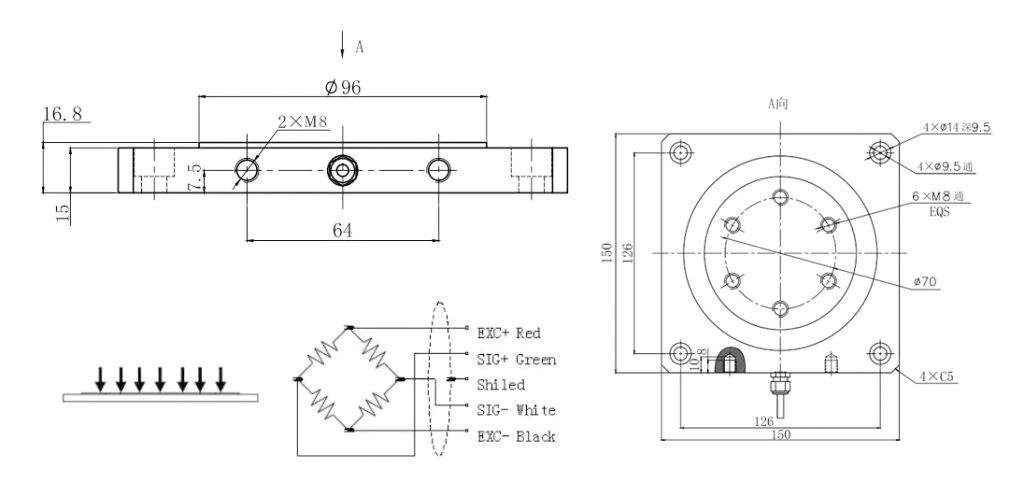

Model :X-B-L150

Technical Parameter:

Capacity (Optional): 0.5t, 1t, 2t, 5t
Material: Alloy steel
Nonlinearity: 0.5%F.S
Rated output: 2.0±10%mV/V
Recommended excitation: 5V-10VDC
Maximum excitation: 10V DC
Protection class: IP65
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S
Operating temp range: -20~80°C
Repeatability: 0.5%F.S
Insulation: ≥5000MΩ/100VDC

Input impedance: 750±50Ω
Output impedance: 700±10Ω
Creep (30min): 0.1%F.S
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S
Temp effect on zero: 0.2%F.S./10°C
Safe load limit: 150%
Ultimate load limit: 200%
Cable size: Ø4x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

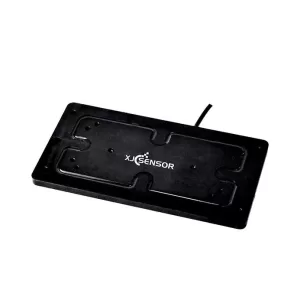

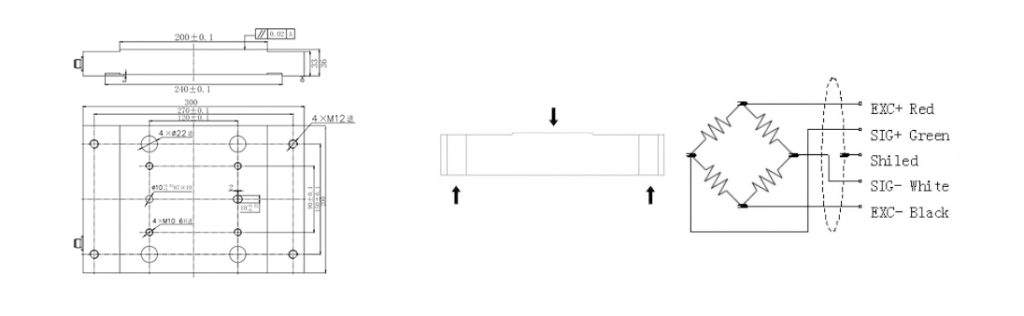

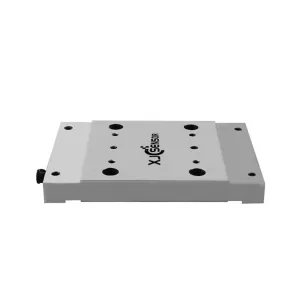

Model :X-B150

Technical Parameter:

Capacity: 0-20T
Material: Stainless steel
Nonlinearity: 0.2%F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP65
Compensated temp range: -10~40°C
Hysteresis: 0.2%F.S.
Operating temp range: -20~80°C
Repeatability: 0.2%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 1080 ±30Ω
Output impedance: 1000 ±5Ω
Creep (30min): 0.2%F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø5x5m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

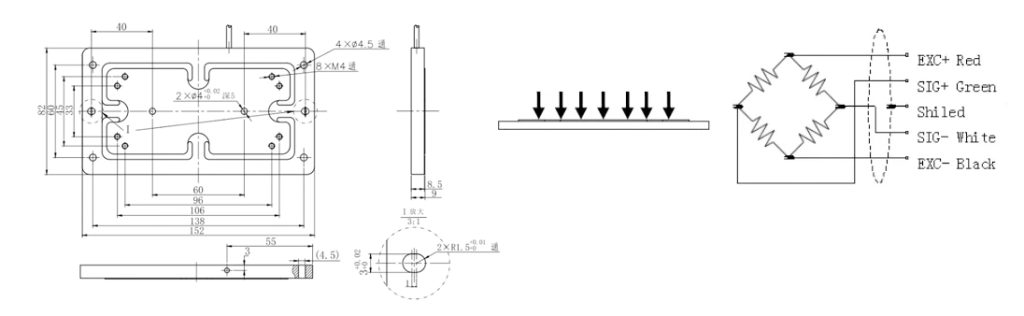

Model :X-B152

Technical Parameter:

Capacity: 0-200 kg
Material: Stainless steel, Alloy steel
Nonlinearity: 0.2%F.S.
Rated output: 1.0~1.5mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.2%F.S.
Operating temp range: -20~80°C
Repeatability: 0.2%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380 ± 30Ω (750 ±50Ω)
Output impedance: 350±10Ω (700±10Ω)
Creep (30min): 0.2%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±0.05 mV/V
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x3m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

Model :X-C01-20-4M

Technical Parameter:

Capacity: 0-1000kg
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 1.0-1.5mV/V
Recommended excitation: 5VDC
Maximum excitation: 10VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: 35000MΩ/100VDC

Input impedance: 1000±100Ω
Output impedance: 1000±100Ω
Creep (30min): 0.1%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

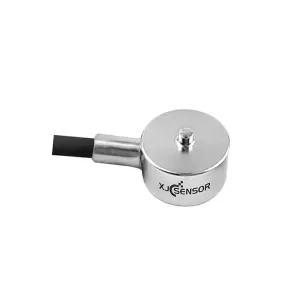

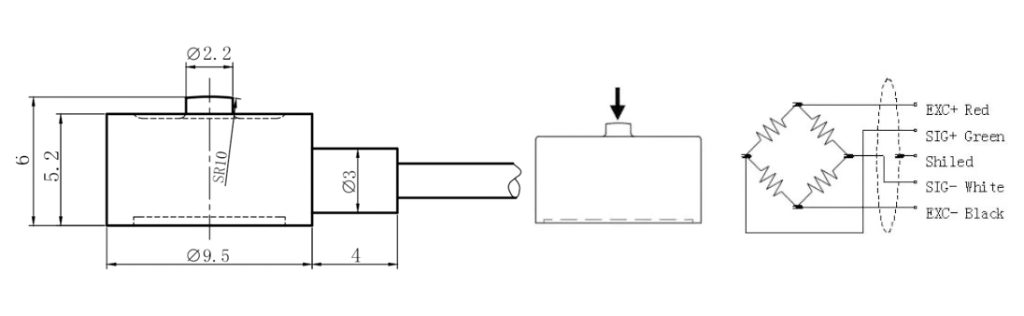

Model :X-C01-9.5

Technical Parameter:

Capacity: 0-50kg
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 1.0-1.5mV/V
Recommended excitation: 5V
Maximum excitation: 10VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.25%F.S.
Operating temp range: -20~80°C
Repeatability: 0.2%F.S.
Insulation: ≥5000MΩ/1000VDC

Input impedance: 350±5Ω (1000±100Ω)
Output impedance: 350±5Ω (1000±100Ω)
Creep (30min): 0.1%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: φ1.6x4m, φ2x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

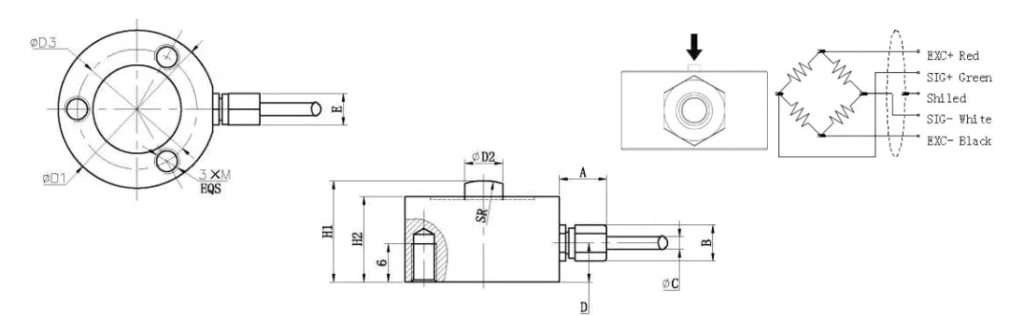

Model :X-C02-3M

Technical Parameter:

Capacity: 0-12T
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 1.0-1.5mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 10VDC
Protect class: IP65
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 1000±50Ω (750±50Ω)
Output impedance: 1000±50Ω (700±10Ω)
Creep (30min): 0.1%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø2x4m / Ø3x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

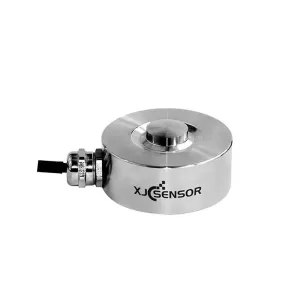

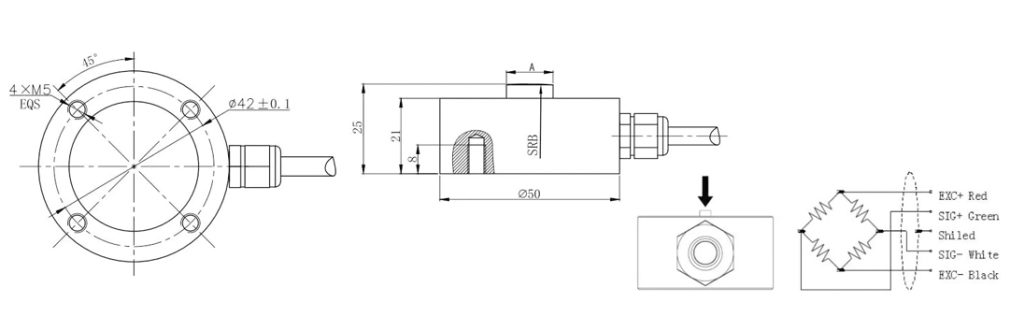

Model :X-C03-4M

Technical Parameter:

Capacity: 0-15T
Material: Stainless steel
Nonlinearity: 0.2%F.S.
Rated output: 1.0-1.5mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.2%F.S.
Operating temp range: -20~80°C
Repeatability: 0.2%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380±30Ω (750±30Ω)
Output impedance: 350±5Ω (700±10Ω)
Creep (30min): 0.2%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø4x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

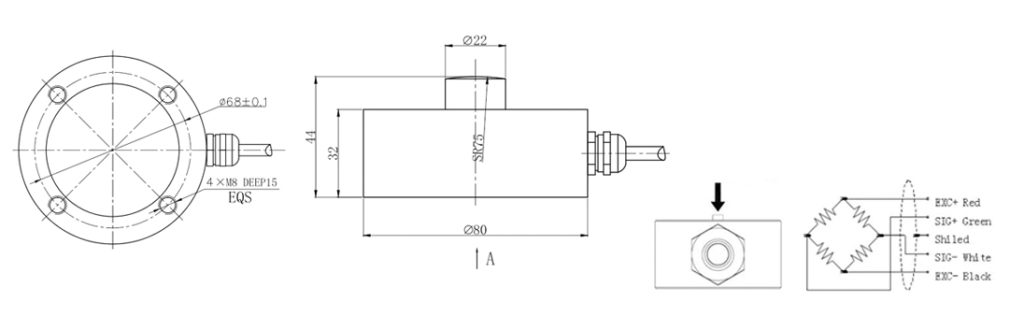

Model :X-C03-80

Technical Parameter:

Capacity: 0-30T
Material: Stainless steel
Nonlinearity: 0.2%F.S.
Rated output: 1.0-1.5mV/V
Recommended excitation: 5V-10VDC
Maximum excitation: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.2%F.S.
Operating temp range: -20~80°C
Repeatability: 0.2%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380±30Ω (750±30Ω)
Output impedance: 350±5Ω (700±10Ω)
Creep (30min): 0.2%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø4x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

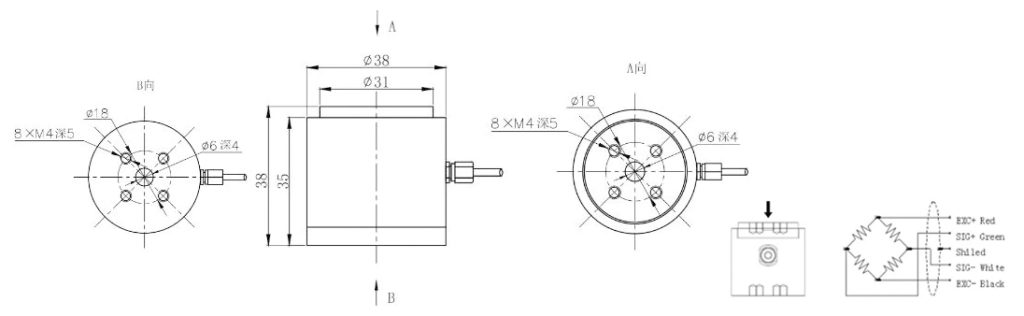

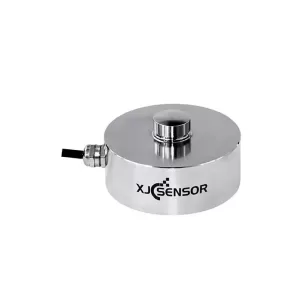

Model :X-C08

Technical Parameter:

Capacity: 5kg, 10kg, 20kg, 50kg, 100kg
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.05%F.S.
Operating temp range: -20~80°C
Repeatability: 0.05%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380 ±30Ω
Output impedance: 350 ±10Ω
Creep (30min): 0.05%F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

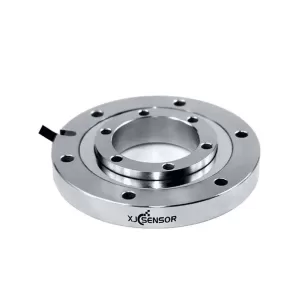

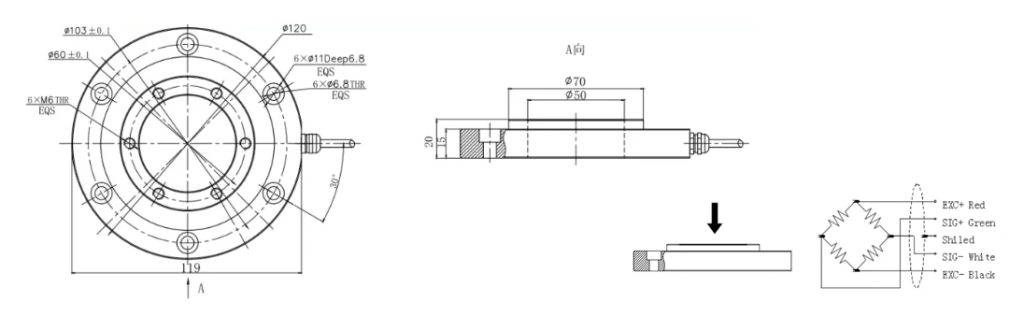

Model :X-H120

Technical Parameter:

Capacity: 0-5T
Material: Stainless steel
Nonlinearity: 0.1%F.S.
Rated Output: 2.0±10%mV/V
Recommended Excitation: 5-10VDC
Maximum Excitation: 15VDC
Protect Class: IP64
Compensated Temp Range: -10~40°C
Hysteresis: 0.1%F.S.
Operating Temp Range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: ≥5000MΩ/100VDC

Input Impedance: 380±30Ω（700±30Ω）
Output Impedance: 350±5Ω （700±5Ω）
Creep (30min): 0.05%F.S.
Temp Effect on Output: 0.05%F.S./10°C
Zero Balance: ±2%F.S.
Temp Effect on Zero: 0.05%F.S./10°C
Limit Load: 150%
Breaking Load: 200%
Cable Size: Ø4x4m
Life: Full scale more than 1 million times
Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

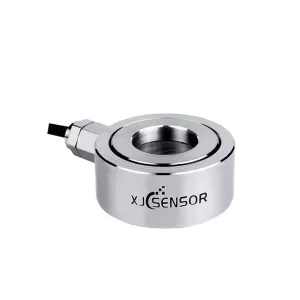

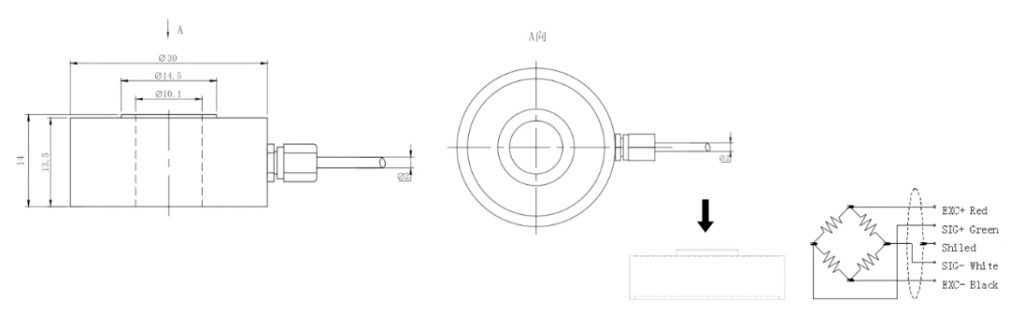

Model :X-H30

Technical Parameter:

Capacity: 0-200 kg
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S.
Operating temp range: -20~80°C
Repeatability: 0.5%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 350±5Ω (700±30Ω)
Output impedance: 350±5Ω (700±5Ω)
Creep (30min): 2%F.S.
Temp effect on output: 0.1%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.1%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø2x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

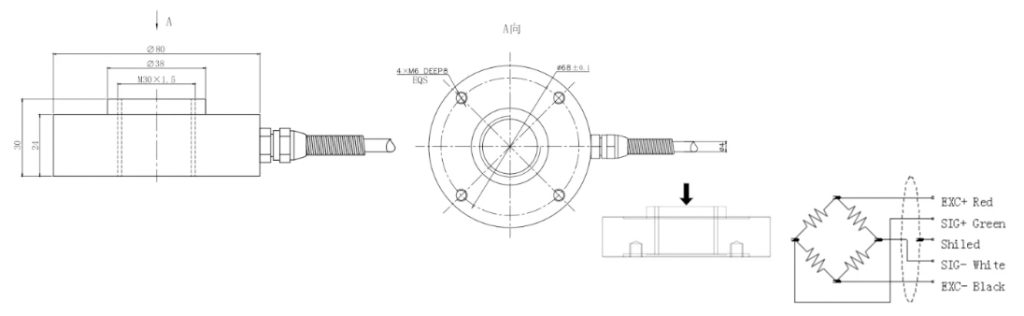

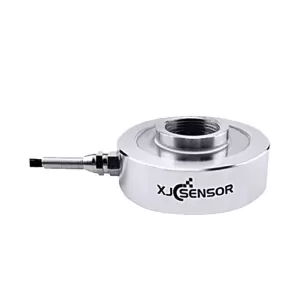

Model :X-H80

Technical Parameter:

Capacity: 0-5T
Material: Stainless steel
Nonlinearity: 0.1%F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.1%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 750 ± 50Ω
Output impedance: 700 ± 10Ω
Creep (30min): 0.1%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø4x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

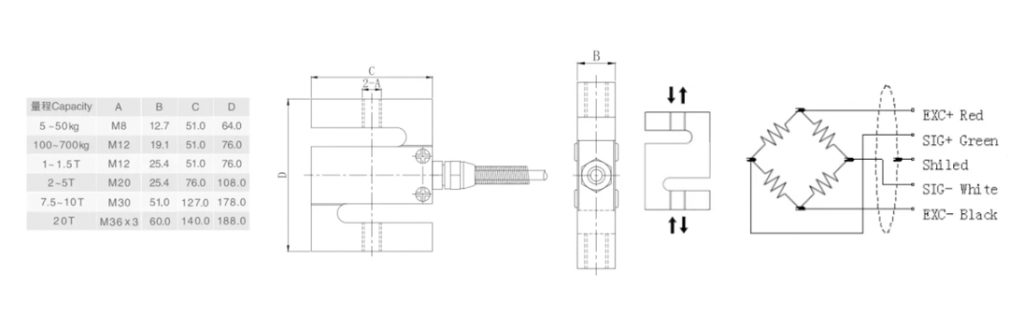

Model :X-S02

Technical Parameter:

Capacity: 0-20T
Material: Stainless steel, Alloy steel
Nonlinearity: 0.02-0.05% F.S.
Rated output: 2.0±10%mV/V
Recommended excitation voltage: 5-10VDC
Maximum excitation voltage: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.02-0.05% F.S.
Operating temp range: -20~80°C
Repeatability: 0.02-0.05% F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380±10Ω
Output impedance: 350±3Ω
Creep (30min): 0.02% F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±1%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø5x3m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

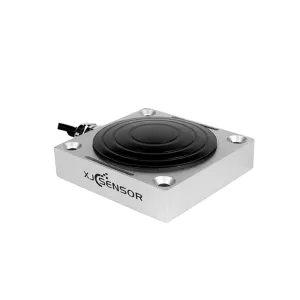

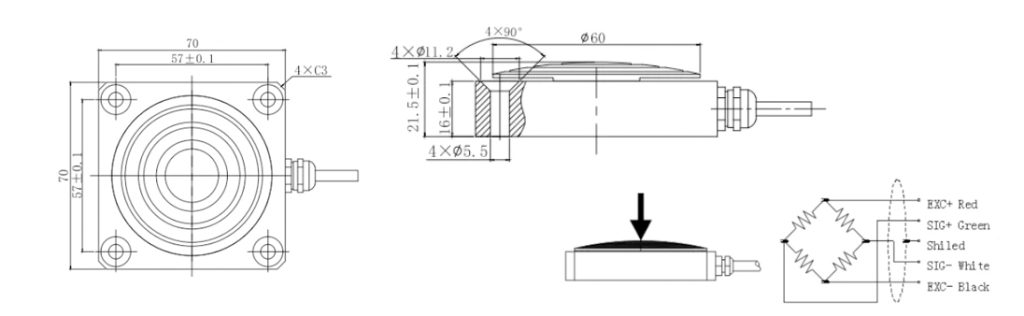

Model :X-TS-PP

Technical Parameter:

Capacity: 0-150 kg
Material: Aluminum alloy
Nonlinearity: 0.5%F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.1%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: ≥2000MΩ/50VDC

Input impedance: 750 ±30Ω
Output impedance: 700 ±10Ω
Creep (30min): 0.1%F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 120%
Breaking load: 200%
Cable size: Ø4x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

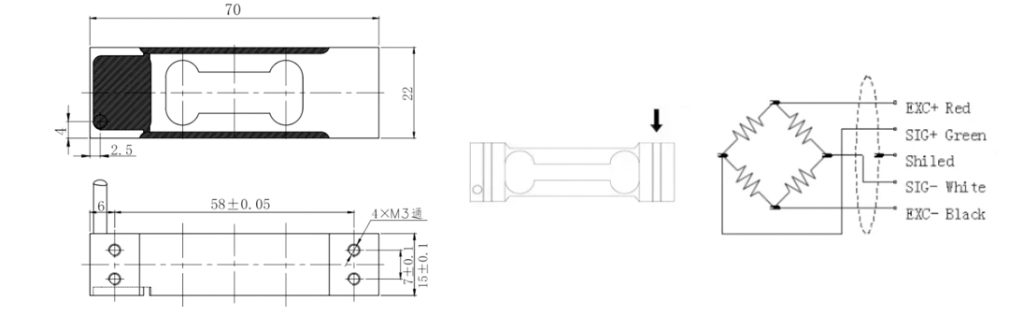

Model :X-X02

Technical Parameter:

Capacity: 0-30kg
Material: Aluminum alloy
Nonlinearity: 0.02%F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Hysteresis: 0.02%F.S.
Compensated temp range: -10~40°C
Repeatability: 0.02%F.S.
Operating temp range: -20~80°C
Input impedance: 400 ±50Ω

Insulation: ≥5000MΩ/100VDC
Creep (30min): 0.02%F.S.
Output impedance: 350 ±5Ω
Zero balance: ±2%F.S.
Temp effect on output: 0.05%F.S./10°C
Limit load: 150%
Temp effect on zero: 0.05%F.S./10°C
Cable size: Ø3x4m
Breaking load: 200%
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

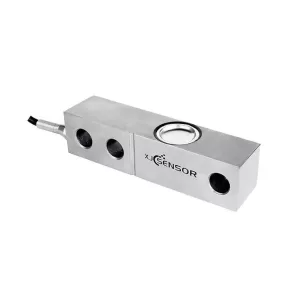

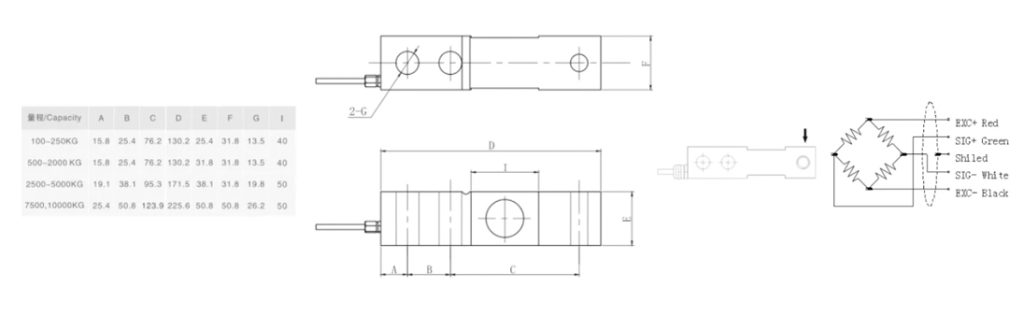

Model :X-X08

Technical Parameter:

Capacity: 0-10000kg
Material: Stainless steel, Alloy steel
Nonlinearity: 0.05%F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Hysteresis: 0.05%F.S.
Compensated temp range: -10~40°C
Repeatability: 0.05%F.S.
Operating temp range: -20~80°C
Input impedance: 400 ±50Ω

Insulation: ≥5000MΩ/100VDC
Creep (30min): 0.1%F.S.
Output impedance: 350 ±5Ω
Zero balance: ±2%F.S.
Temp effect on output: 0.05%F.S./10°C
Limit load: 150%
Temp effect on zero: 0.05%F.S./10°C
Cable size: Ø3x3m
Breaking load: 200%
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

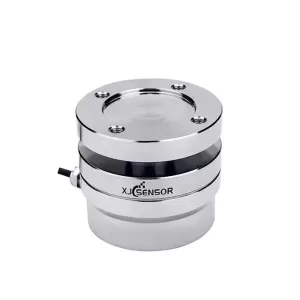

Model :X-Z-U3

Technical Parameter:

Capacity: 0-10T
Material: Stainless steel
Nonlinearity: 0.1%F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.1%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380±30Ω (750±30Ω)
Output impedance: 350±5Ω (700±5Ω)
Creep (30min): 0.1%F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

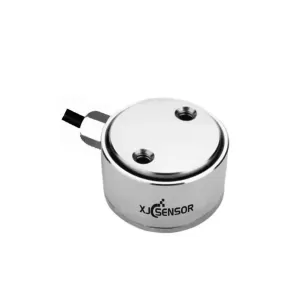

Model :X-Z15-H9-2M

Technical Parameter:

Capacity: 0-20 kg
Material: Stainless steel
Nonlinearity: 0.05%F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5V-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.05%F.S.
Operating temp range: -20~80°C
Repeatability: 0.05%F.S.
Insulation: ≥5000MΩ/100VDC

Insulation: ≥5000MΩ/100VDC
Input impedance: 350Ω ± 10Ω
Output impedance: 350Ω ± 5Ω
Creep (30min): 0.05%F.S.
Temp effect on output: 0.1%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.1%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø2x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

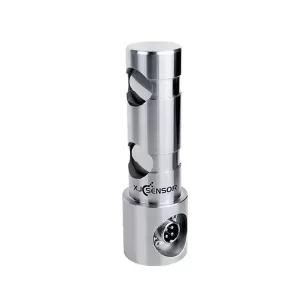

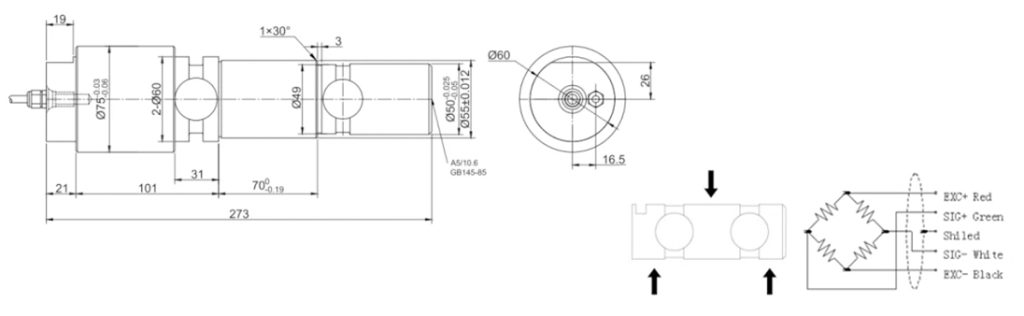

Model :X-ZX-A

Technical Parameter:

Capacity: 10T
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 2.0±10%mV/V (0~5V/0~10V/4~20MA)
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP67
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S.
Operating temp range: -20~80°C
Repeatability: 0.5%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 750±30Ω
Output impedance: 700±10Ω
Creep (30min): 0.5%F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 200%
Breaking load: 300%
Cable size: Ø5x5m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

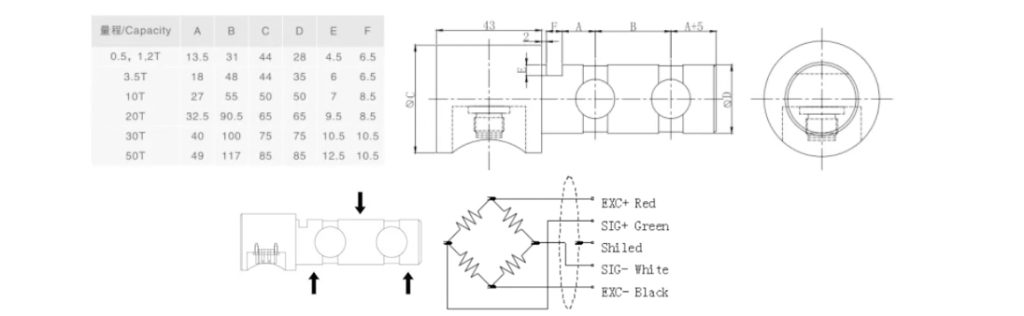

Model :X-ZX-B

Technical Parameter:

Capacity: 0-50T
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP67
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S.
Operating temp range: -20~80°C
Repeatability: 0.5%F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 750±30Ω
Output impedance: 700 ±10Ω
Creep (30min): ±0.5%F.S.
Temp effect on output: 0.5%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.5%F.S./10°C
Limit load: 200%
Breaking load: 300%
Cable size: Ø5x3m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

Load Cells & Force Sensors

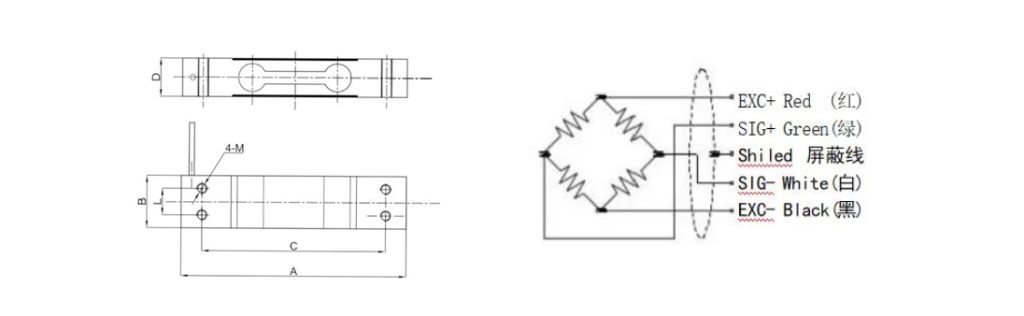

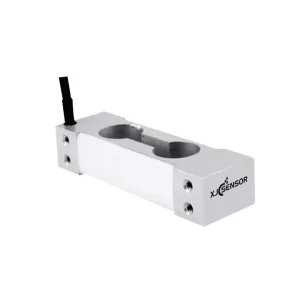

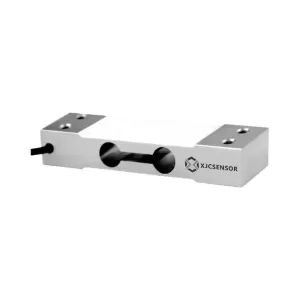

Model :X-X01

Technical Parameter:

Capacity (Optional): 3kg, 5kg, 10kg, 20kg, 50kg, 100kg, 250kg
Material: Aluminum alloy
Nonlinearity: 0.03% F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 10VDC
Hysteresis: 0.03% F.S
Compensated temp range: -10~40°C
Repeatability: 0.03% F.S.
Operating temp range: -20～80°C
Input impedance: 400±50Ω

Insulation: ≥5000MΩ/100VDC
Creep (30min): 0.03% F.S.
Output impedance: 350±5Ω
Zero balance: ±2%F.S.
Temp effect on output: 0.05% F.S./10°C
Safe load limit: 150%
Temp effect on zero: 0.05% F.S./10°C
Cable size: 4x4m
Ultimate load limits: 200%
Life: Full scale more than 1 million times
Cable connection:Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White.

Tension and Compression Load Cell

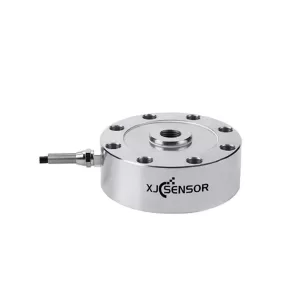

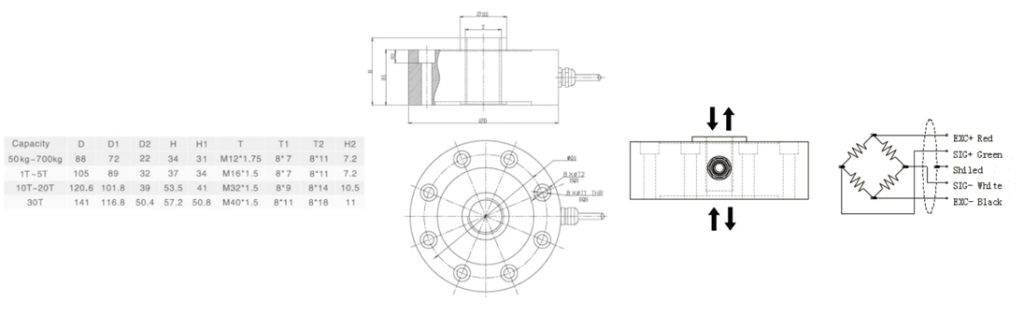

Model :X-L08

Technical Parameter:

Capacity: 0-30T
Material: Alloy steel, Stainless steel
Nonlinearity: 0.1% F.S.
Rated output: 2.0±0.05mV/V
Recommended excitation: 5-12VDC
Maximum excitation: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.05% F.S.
Operating temp range: -20~80°C
Repeatability: 0.05% F.S.
Insulation: ≥2000MΩ

Input impedance: 750±30Ω
Output impedance: 700±5Ω
Creep (30min): 0.05% F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø5x3m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

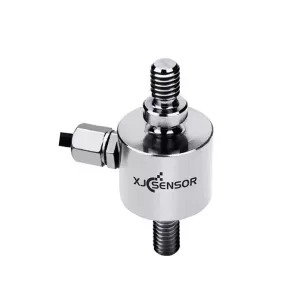

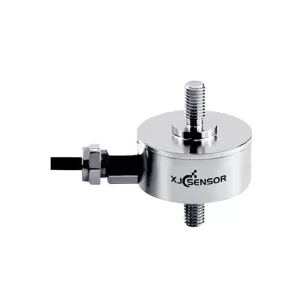

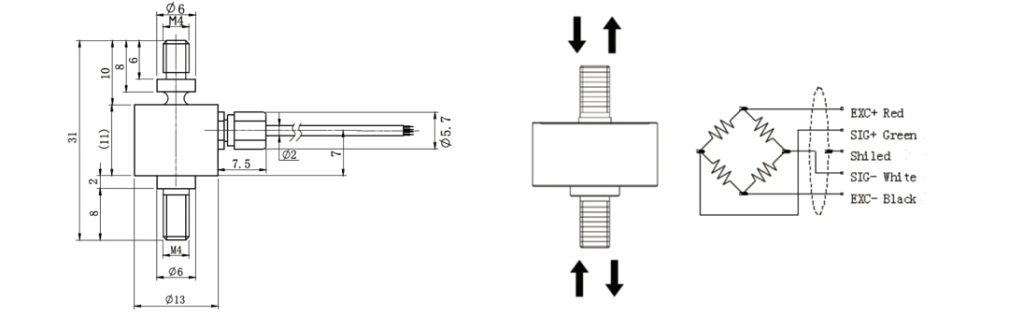

Model :X-S05-13

Technical Parameter:

Capacity: 0-50kg
Material: Stainless steel
Nonlinearity: 0.5% F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP67
Compensated temp range: -10~40°C
Hysteresis: 0.5% F.S.
Operating temp range: -20~80°C
Repeatability: 0.5% F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 350±50Ω
Output impedance: 350±5Ω
Creep (30min): 0.1% F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø2x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

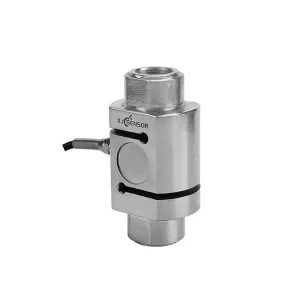

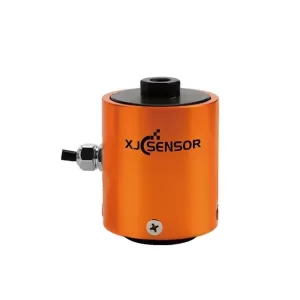

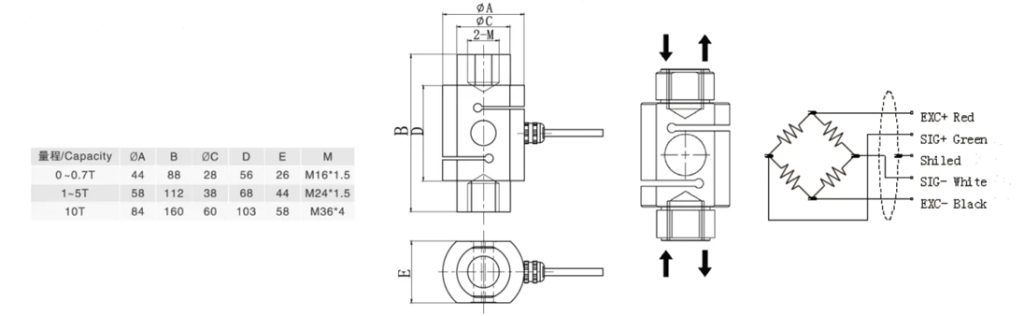

Model :X-S06

Technical Parameter:

Capacity: 0-10T
Material: Stainless steel, Alloy steel
Nonlinearity: 0.05% F.S.
Rated Output: 2.0±0.05mV/V
Recommended Excitation: 5-12VDC
Maximum Excitation: 15VDC
Protect Class: IP65
Compensated Temp Range: -10~40°C
Hysteresis: 0.05% F.S.
Operating Temp Range: -20~80°C
Repeatability: 0.05% F.S.
Insulation: ≥2000MΩ/100VDC

Input Impedance: 380±30Ω
Output Impedance: 350±5Ω
Creep (30min): 0.05% F.S.
Temp Effect on Output: 0.05%F.S./10°C
Zero Balance: ±2%F.S.
Temp Effect on Zero: 0.05%F.S./10°C
Limit Load: 150%
Breaking Load: 200%
Cable Size: Ø5 x3m
Life: Full scale more than 1 million times
Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

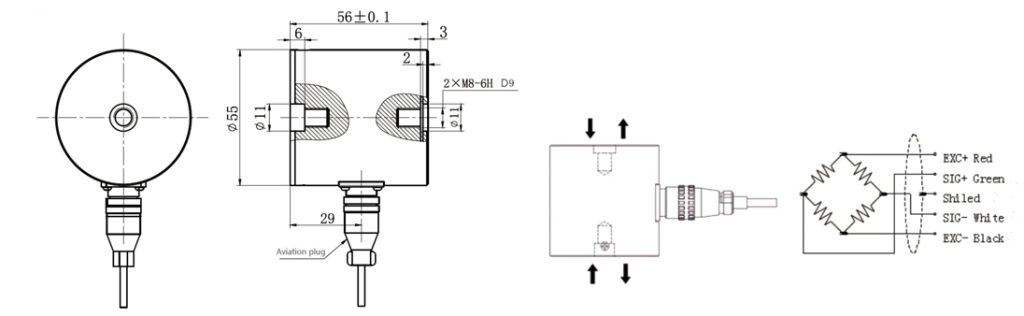

Model :X-S07-B

Technical Parameter:

Capacity: 0-50kg
Material: Aluminum alloy, Alloy steel
Nonlinearity: 0.05% F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.05% F.S.
Operating temp range: -20~80°C
Repeatability: 0.05% F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380±30Ω
Output impedance: 350±5Ω
Creep (30min): 0.05% F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø4x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

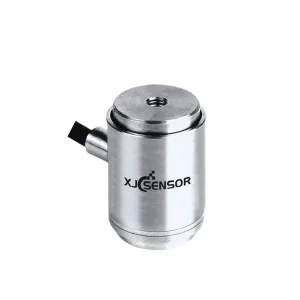

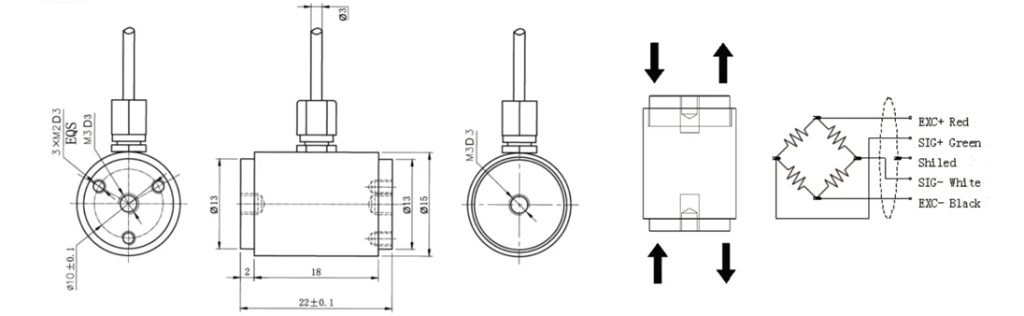

Model :X-S07-Q-15

Technical Parameter:

Capacity: 0-50kg
Material: Stainless steel
Nonlinearity: 0.05% F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.05% F.S.
Operating temp range: -20~80°C
Repeatability: 0.05% F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380±10Ω
Output impedance: 350±5Ω
Creep (30min): 0.05% F.S.
Temp effect on output: 0.02%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.02%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

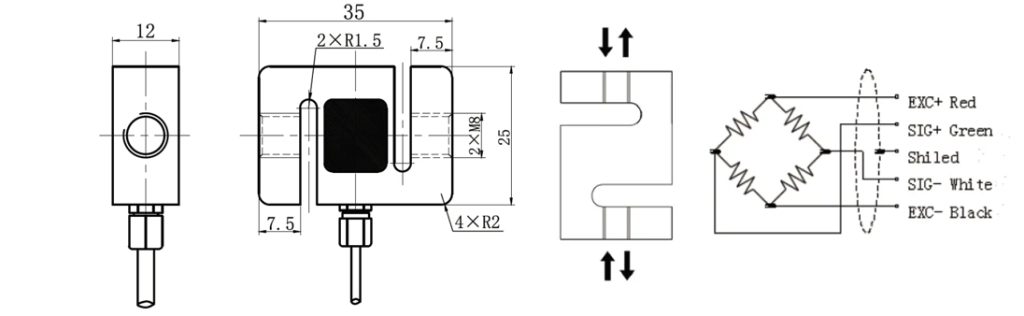

Model :X-S09-A-OP

Technical Parameter:

Capacity: 0-200kg
Material: Stainless steel
Nonlinearity: 0.05% F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP65
Compensated temp range: -10~40°C
Hysteresis: 0.05% F.S.
Operating temp range: -20~80°C
Repeatability: 0.05% F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 350±5Ω
Output impedance: 350±5Ω
Creep (30min): 0.05% F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 500%
Cable size: Ø2x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

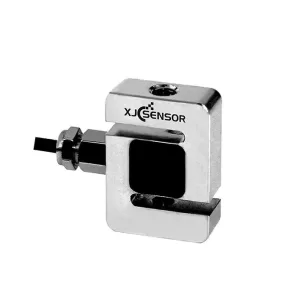

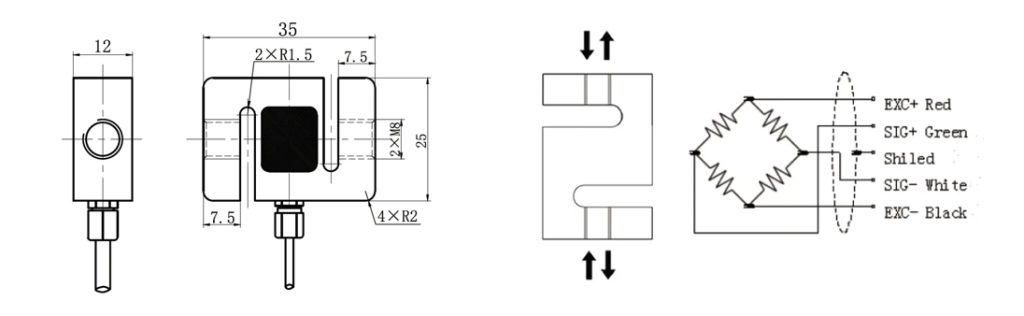

Model :X-S09-B

Technical Parameter:

Capacity: 0-200kg
Material: Stainless steel
Nonlinearity: 0.05% F.S.
Rated output: 2.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP65
Compensated temp range: -10~40°C
Hysteresis: 0.05% F.S.
Operating temp range: -20~80°C
Repeatability: 0.05% F.S.
Insulation: ≥5000MΩ/100VDC

Input impedance: 380±30Ω
Output impedance: 350±5Ω
Creep (30min): 0.05% F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x4m
Life: Full scale more than 1 million times
Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

Pressure Sensor / Transmitter

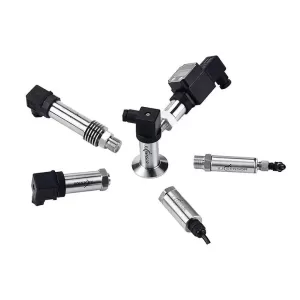

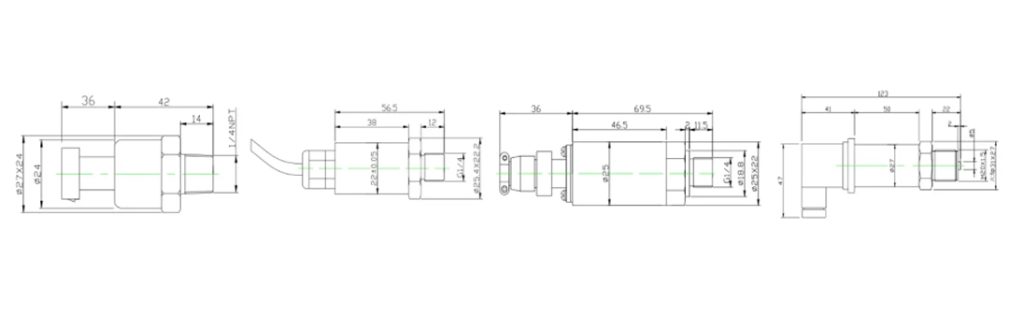

Model :X-100T

Technical Parameter:

Measuring Range (optional): -0.1~200MPa
Operating Temp Range: -20℃~75℃, ≤85%RH
Accuracy: 0.1%FS; 0.25%FS; 0.5%FS
Storage Environment: -40℃~85℃, ≤95%RH
Power Supply: Transducer: 5 ~10VDC, Transmitter: 9 ~36VDC
Limit Load: 150%
Output Signal: Transducer: 1.5mV/V, 2mV/V, Transmitter: 4-20mA, 0-20mA, 0-10V, 0-5V
Breaking Load: 200%

Zero Balance: 0.5%FS
Temp Effect on Output: 0.03%FS/℃
Full Scale Error: 1.0% FS
Long Stability: 0.2%FS/year
Compensated Temp Range: -10℃~60℃
Life: 700±5/350±5Ω
Process Connection: M20×1.5, M12x1, M10 x1, 1/4NPT, G1/2, G1/4 or as custom

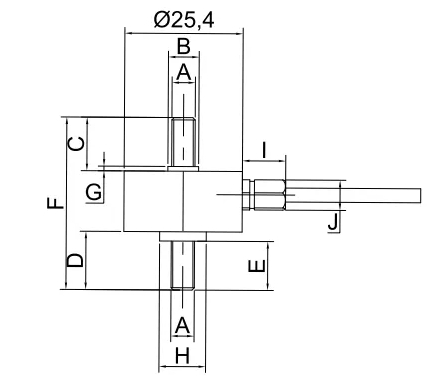

Single Axis Load Cell

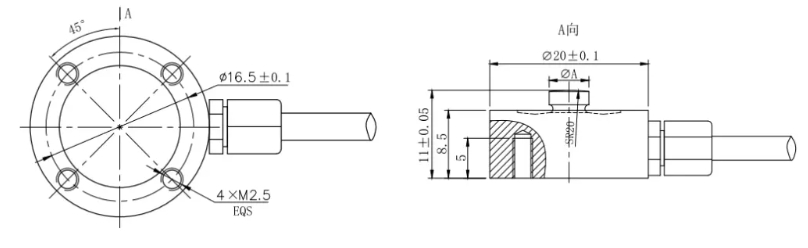

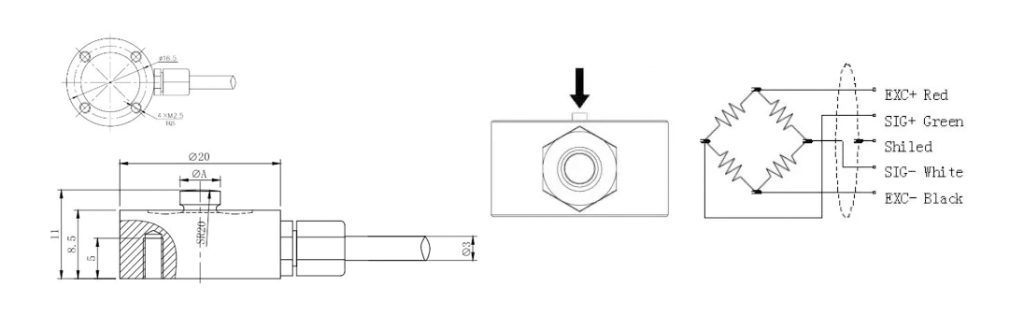

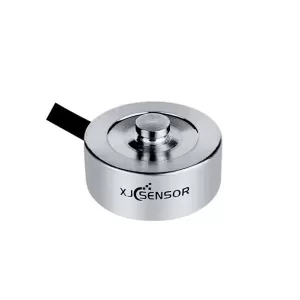

Model :Single axis load cell X-C01

Technical Parameter:

Output sensitivity: 1.0-1.5mV/V
Material: Stainless steel
Non-linearity: ≤0.3%F.S.
Repeatability: ≤0.1%F.S.
Zero balance: ±2%F.S.
Operating temp range: -20~80°C
Compensated temp range: -10~60°C
Insulation resistance: ≥5000MΩ/100VDC

Recommended excitation voltage: 5-10VDC
Limit load: 150%F.S.
Cable size: φ3x3m
Protection class: IP64
Temp effect on output: ≤0.1%F.S./10°C
Temp effect on zero: ≤0.1%F.S./10°C
Cable connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white

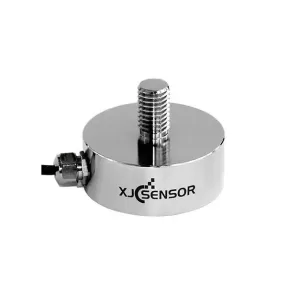

Model :Single axis load cell X-C04

Technical Parameter:

Output sensitivity: 1.5±10%mV/V
Material: Stainless steel
Non-linearity: ≤0.3%F.S.
Repeatability: ≤0.1%F.S.
Zero balance: ±2%F.S.
Operating temp range: -20~80°C
Compensated temp range: -10~60°C
Insulation resistance: ≥5000MΩ/100VDC

Recommended excitation voltage: 5-10VDC
Limit load: 150%F.S.
Cable size: φ4x4m
Protection class: IP65
Temp effect on output: ≤0.05%F.S./10°C
Temp effect on zero: ≤0.05%F.S./10°C
Cable connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white

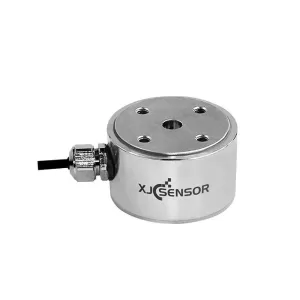

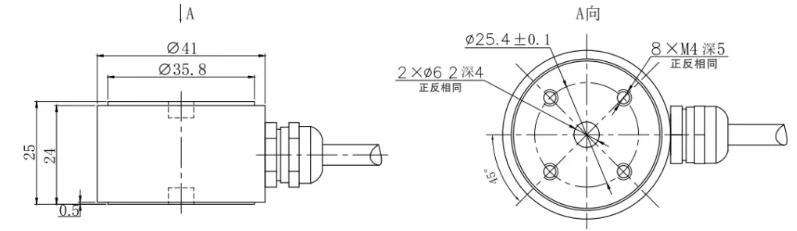

Model :Single axis load cell X-C18

Technical Parameter:

Output sensitivity: 2.0±10%mV/V
Material: Stainless steel
Non-linearity: ≤0.05%F.S. (0-50kg)
≤0.2%F.S. (100kg-2t)
Repeatability: ≤0.05%F.S.
Zero balance: ±2%F.S.
Operating temp range: -20~80°C
Compensated temp range: -10~60°C
Insulation resistance: ≥5000MΩ/100VDC

Recommended excitation voltage: 5-10VDC
Limit load: 150%F.S.
Cable size: φ3x3m
Protection class: IP64
Temp effect on output: ≤0.05%F.S./10°C
Temp effect on zero: ≤0.05%F.S./10°C
Cable connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white

Model :Single axis load cell X-S05-25

Technical Parameter:

Output sensitivity: 1.0±10%mV/V
Repeatability: ≤0.1%F.S.
Non-linearity: ≤0.1%F.S.
Operating temp range: -20~80°C
Zero balance: ±2%F.S.
Insulation resistance: ≥5000MΩ/100VDC
Compensated temp range: -10~60°C

Limit load: 150%F.S.
Recommended excitation voltage: 5-10VDC
Protection class: IP64
Cable size: φ3x3m
Temp effect on zero: ≤0.05%F.S./10°C
Temp effect on output: ≤0.05%F.S./10°C
Cable connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white

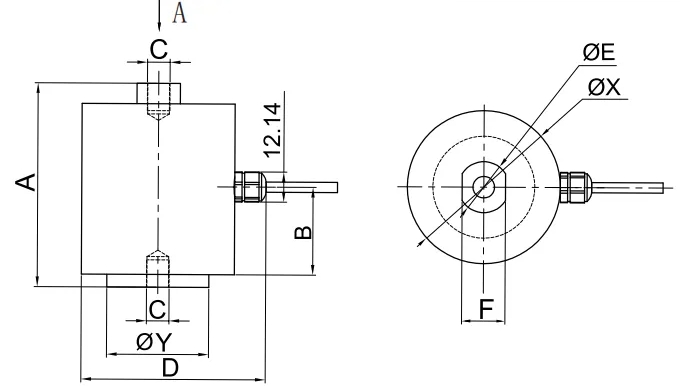

Model :Tension and compression load cell X-S07

Technical Parameter:

Output sensitivity: 1.0±10%mV/V
Repeatability: ≤0.05%F.S.
Non-linearity: ≤0.05%F.S.
Operating temp range: -20~80°C
Zero balance: ±2%F.S.
Insulation resistance: ≥5000MΩ/100VDC
Compensated temp range: -10~60°C
Limit load: 150%F.S.

Recommended excitation voltage: 5-10VDC
Protection class: IP64
Cable size: φ4x3m
Temp effect on zero: ≤0.05%F.S./10°C
Temp effect on output: ≤0.05%F.S./10°C
Material: Stainless steel/Aluminum alloy
Cable connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white

BENEFITS OF HIGH-PRECISION LOAD CELLS

BENEFITS of high-precision load cells include enhanced accuracy, consistency, and the ability to withstand challenging industrial conditions. XJCSENSOR’s load cells offer precise, reliable measurements that improve quality control, safety, and operational efficiency.

Key Benefits:

Accurate force and weight data for better control
Real-time measurement for automated adjustments
Increased operational efficiency and safety

INDUSTRIAL APPLICATIONS OF LOAD CELLS

INDUSTRIAL applications for load cells span across multiple fields, from automation and manufacturing to quality testing. XJCSENSOR’s load cells are designed to perform reliably in high-stress environments, delivering accurate force and weight data for a variety of industrial applications.

Applications Include:

Weighing systems in manufacturing
Material testing and quality assurance
Load monitoring in heavy machinery

LOAD CELLS FOR AUTOMATION SYSTEMS

AUTOMATION systems rely heavily on load cells to maintain accurate force measurements during operation. XJCSENSOR’s load cells provide real-time data that allows automated systems to adjust dynamically, ensuring smooth and precise control. This level of accuracy is essential for automated production lines and robotic systems.

TYPES OF LOAD CELLS FOR SPECIFIC APPLICATIONS

TYPES of load cells offered by XJCSENSOR cater to a variety of specific industrial needs, allowing customers to choose the best solution for their applications.

Compression Load Cells – Ideal for measuring force in applications where compressive load is applied.
Tension Load Cells – Designed for applications requiring accurate tension measurements.
Multi-Axis Load Cells – Measure force in multiple directions, suitable for complex applications.

REAL-TIME LOAD MONITORING FOR IMPROVED CONTROL

REAL-TIME load monitoring is crucial for applications where force or weight needs to be adjusted instantly. XJCSENSOR’s load cells provide accurate, real-time data that allows systems to maintain optimal performance. This capability is especially beneficial in dynamic environments where force control is critical.

STRAIN GAUGE TECHNOLOGY IN LOAD CELLS

STRAIN gauge technology is widely used in load cells for its accuracy and reliability. XJCSENSOR’s load cells use high-quality strain gauges to provide consistent, sensitive readings even in harsh industrial environments. This technology is particularly useful in applications that require detailed force or weight data.

Advantages of Strain Gauge Load Cells:

High sensitivity and precision
Durability in challenging conditions
Stable readings for consistent quality

CUSTOMIZED LOAD CELL SOLUTIONS FOR UNIQUE REQUIREMENTS

CUSTOMIZATION is essential for industries with specialized needs. XJCSENSOR offers customizable load cell solutions, including custom ranges, sizes, and designs tailored to meet specific operational demands. Our team works closely with clients to ensure each sensor fits seamlessly into their systems and meets exacting standards.

LOAD CELLS IN QUALITY CONTROL APPLICATIONS

QUALITY control applications benefit significantly from load cells, as they provide critical data on weight and force to maintain high production standards. XJCSENSOR’s load cells allow manufacturers to monitor weight or force throughout production, detecting deviations early and ensuring product quality.

WHY XJCSENSOR IS A TRUSTED PROVIDER OF LOAD CELLS

TRUST in XJCSENSOR’s expertise and dedication to quality makes us a top choice for load cell solutions. Our sensors are manufactured to the highest standards, offering precision, durability, and reliability across various industrial applications. With a focus on customer satisfaction and technical innovation, XJCSENSOR consistently meets the needs of demanding industries.

Conclusion

Load cells are indispensable tools in modern industry, providing accurate, real-time data essential for controlling weight, force, and tension. XJCSENSOR’s high-precision load cells support diverse applications in automation, manufacturing, quality control, and more, offering the reliability and accuracy that industries demand.

By choosing XJCSENSOR, companies benefit from our customizable options, advanced technology, and commitment to quality. Trust XJCSENSOR for your load cell needs and experience enhanced precision and efficiency in your operations.

Ready to take your business to the next level?
