XJCSENSOR: Premier Transmitters for Unmatched Signal Integrity
- Precision Signal Conversion
- Adaptable for Multiple Applications
- Industrial-Strength Construction
- User-Friendly Operation
- Comprehensive Communication Capabilities
Product Excellence with XJCSENSOR Transmitters
Cutting-Edge Accuracy
Our transmitters provide precise signal conversion, ensuring that the data you receive is a true reflection of your system's performance.
Exceptional Versatility
With an extensive range of transmitters, we can cater to various signal types and application requirements, offering the flexibility your operations demand.
Rugged Durability
Engineered for industrial resilience, our transmitters are designed to withstand challenging environmental conditions without compromising quality.
User-Centric Design
We prioritize ease of use, making our transmitters straightforward to install, configure, and maintain, saving you time and effort.
Our Range Transmitter

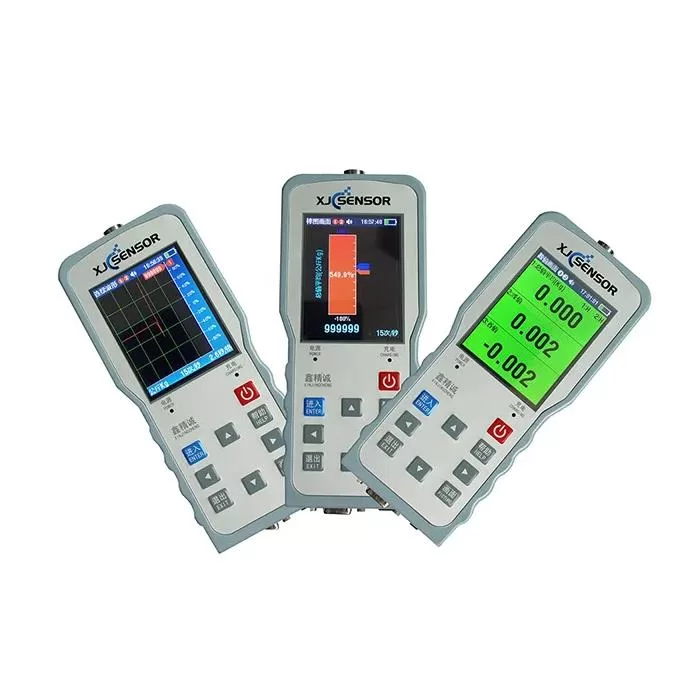

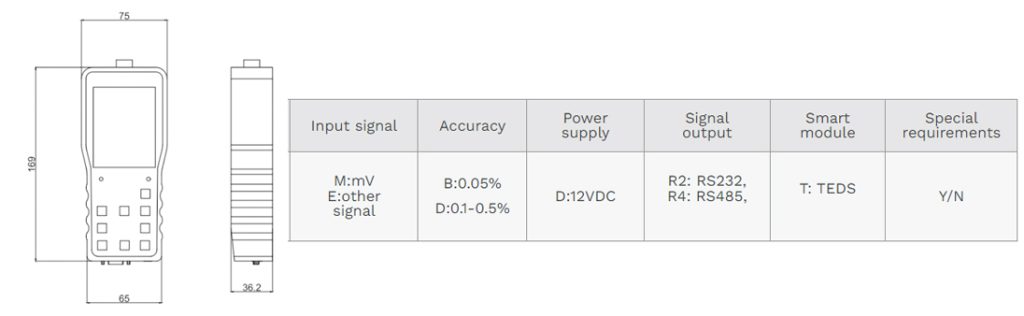

Model :X-CF805T
Technical Parameter:
- Power supply: 12V/5W
- AD resolution: 24 bit
- Sensor’s supply voltage: 5VDC, 200mA
- Sampling rate: 15-1920 Times/Sec.
- Input signal range: 0-20mV
- Transmitting speed: =Sampling rate
- Non-linearity: 0.01%F.S.
- Function: High-speed curve catch
- Accuracy: 0.5%F.S.
- Display: LCD

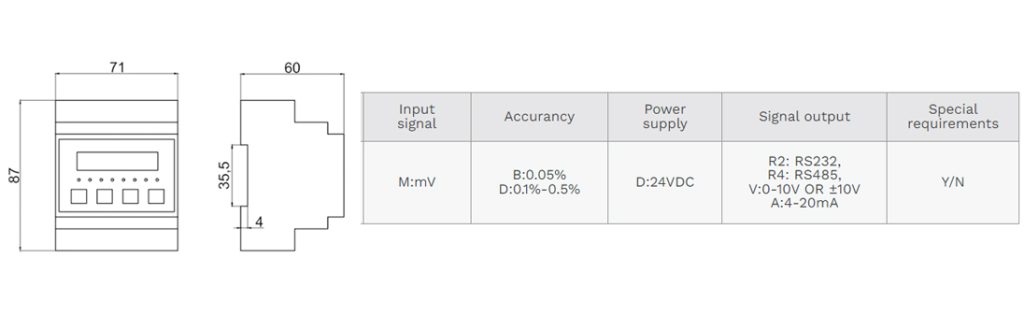

Model :X-T10
Technical Parameter:
- Power supply: DC24V/5W
- AD resolution: 24 bit
- Sensor’s supply voltage: 5VDC, 200mA
- Sampling rate: 480-1920 Times/Sec.
- Input signal range: 0-20mV
- Transmitting speed: =Sampling rate
- Non-linearity: 0.01%F.S.
- Switch output type & capacity: NPN/PNP, 500mA
- Accuracy: 0.5%F.S.
- Switch input type: NPN

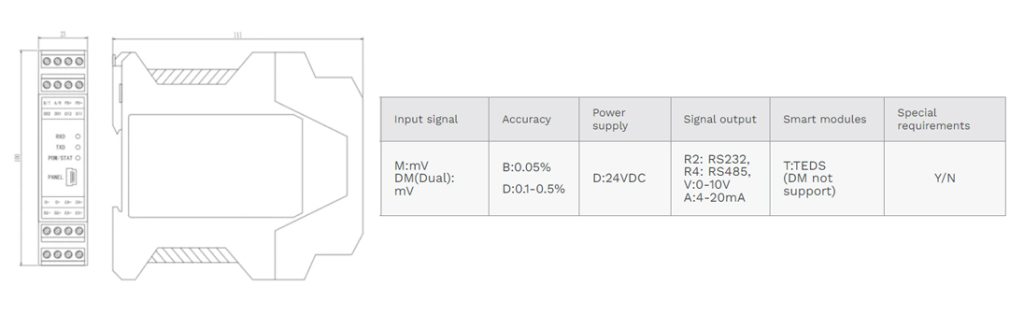

Model :X-T20
Technical Parameter:
- External power supply: 5VDC
- Material: Plastic
- Working Voltage: 24VDC
- Input sensitivity: 0.5-3.0mV/V
- Non-linearity: 0.1%-0.03%F.S.
- Resolution: 1/50000
- Hysteresis: 0.1%-0.05%F.S.
- Sampling speed: 15-4800Hz (Switchable)
- Repeatability: 0.1%-0.05%F.S.
- Operating temp range: -10℃ to 50℃, Humidity Below 85% RH
- Zero balance: ±2%F.S.
- Display accuracy: -199,999-999,999
- Power Consumption: about 5W
- Communication Interface: RS232, RS485, 0-10V, 4-20mA
- Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White (in)

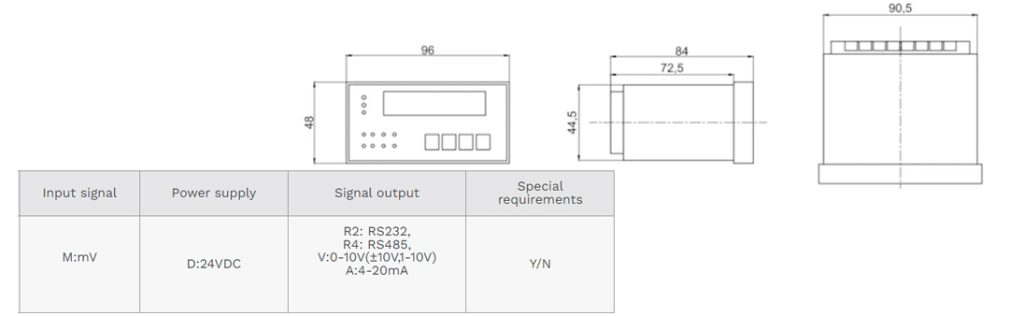

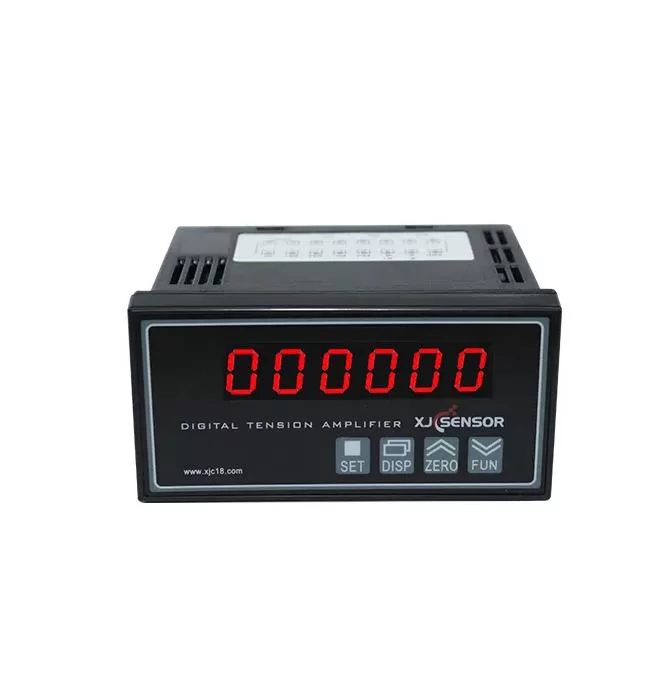

Model :X-T30
Technical Parameter:
- Power supply: DC24V/5W
- AD resolution: 24 bit
- Sensor’s supply voltage: 5VDC, 200mA
- Sampling rate: 480-1920 Times/Sec.
- Input signal range: 0-20mV
- Transmitting speed: =Sampling rate
- Non-linearity: 0.03%F.S.
- Switch output type & capacity: NPN/PNP, 500mA
- Accuracy: 0.03%F.S.
- Switch input type: NPN

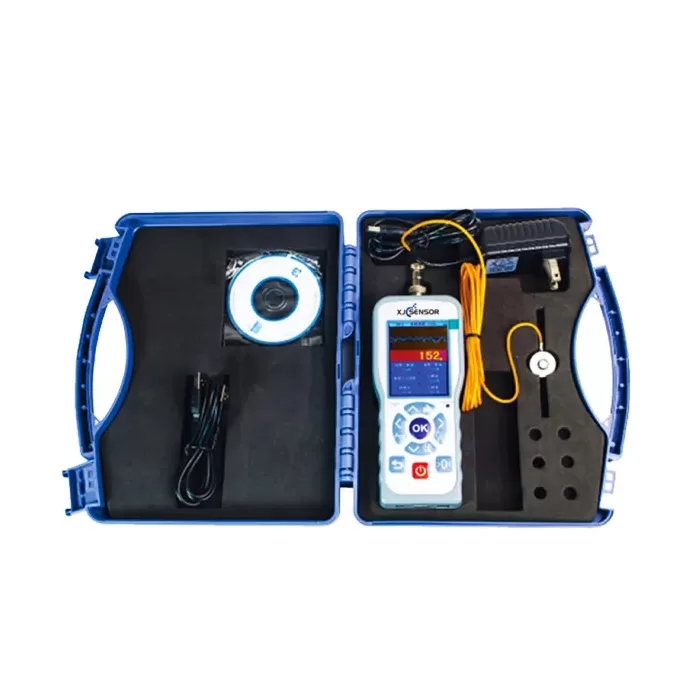

Model :X-CF490 Portable Force Gauge
Features:
- High accuracy and high resolution with 2.8 inch TFT true colour display;
- Built-in real-time clock for displaying real time and date;
- Deviation value (Max./Min.), and within/over tolerance limit warning function;
- Optional independent relay output at Max.- and Min.- value, and alarm both in buzzer and screen display;
- Direction keys and 180-degree rotating display screen;
- Three measuring units in N (Newton), Kg (Kilogram) and lb (Pound) available;
- Functions of Peak-value hold/automatic release and time clear;
- Memory can store up to 100 sets of test with test time, peak value, valley value and mean value, and 1 setof curve record to trace the entire test process;
- Function of testing material strength by input the section area of material;
- Power saving function can be set as automatic power off if no operation or automatic backlight;
- Support PC software available for test data storage,print, and analysis, etc;
- Optional mini printer available;
- Suitable for different kinds of testing equipments,Built-in manual instruction with photos and texts;
Services Tailored for Your Business
Wholesale Purchasing
Access our top-quality transmitters through competitive wholesale pricing, benefiting from both scale and cost-efficiency.
Customization (OEM)
Develop transmitters tailored to your specifications, ensuring they integrate seamlessly with your existing systems.
End-to-End Solutions (ODM)
Take advantage of our full-scale development capabilities, from design conception to final production, delivering solutions that meet your exact needs.
Our Pledge to Quality
Rigorous Testing Protocols
All transmitters undergo stringent testing processes to ensure their performance is consistent and dependable.
Premium Materials Selection
We select only the best materials for construction, which translates to superior product longevity and safety.
Expert Supervision
Our seasoned professionals meticulously oversee each stage of manufacturing, maintaining strict quality control procedures.
Innovation & Continuous Improvement
We stay abreast of technological advancements to enhance our products, ensuring they lead the market in terms of performance and reliability.
